Plate Heat Exchanger Components
During the service life of a plate heat exchanger, you will be regularly changing the gaskets and cleaning the heat transfer plates.
-
Components
However, there may be times when other items become damaged, especially if the plate heat exchanger is installed in an aggressive environment or used in conjunction with corrosive liquids.

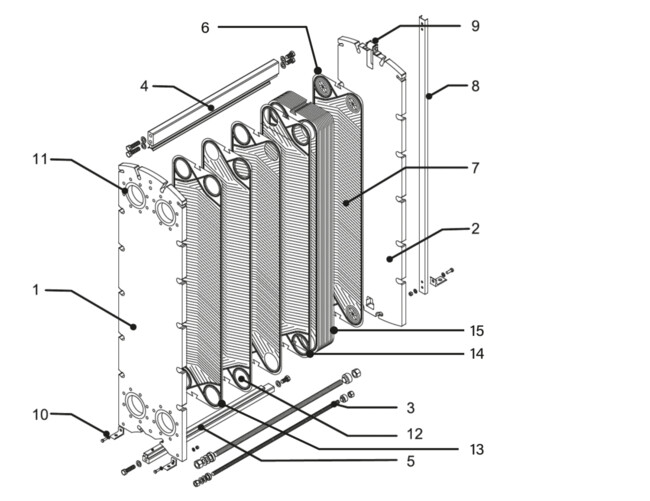

| Item | Description | Item | Description | Item | Description |
| 1 | Fixed frame plate | 6 | Back plate | 11 | Liners |
| 2 | Mobile pressure plate | 7 | Plates and gaskets | 12 | Porthole |
| 3 | Tightening bolts / tie bar | 8 | Column / back let | 13 | Front plate & full 'D' gasket |
| 4 | Top guiding / carrier bar | 9 | Pressure plate roller | 14 | Flow gaskets |
| 5 | Bottom guiding / carrier bar | 10 | Feet | 15 | Flow plates |
